Meetsensor distributes the US OTTO P7 - ultra-small, sealed, military grade - PRF-8805/110
A full range of products including push button switches are guaranteed to be brand new, original and authentic, and we can provide product model pictures, parameters, technical data and official information.

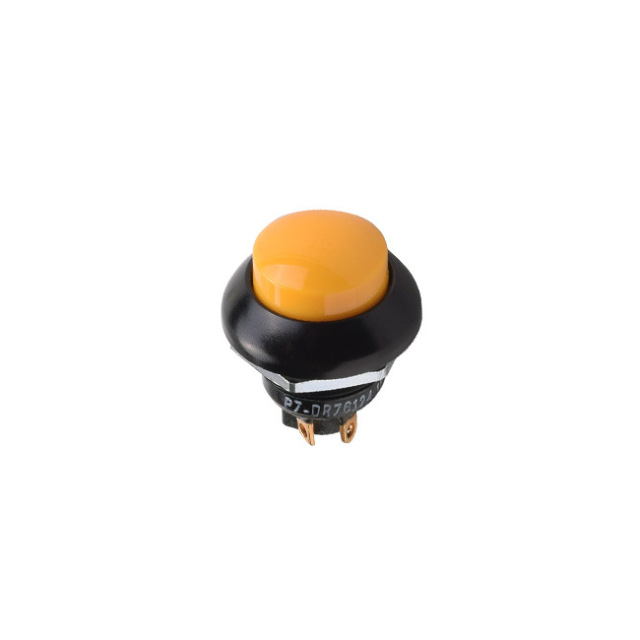

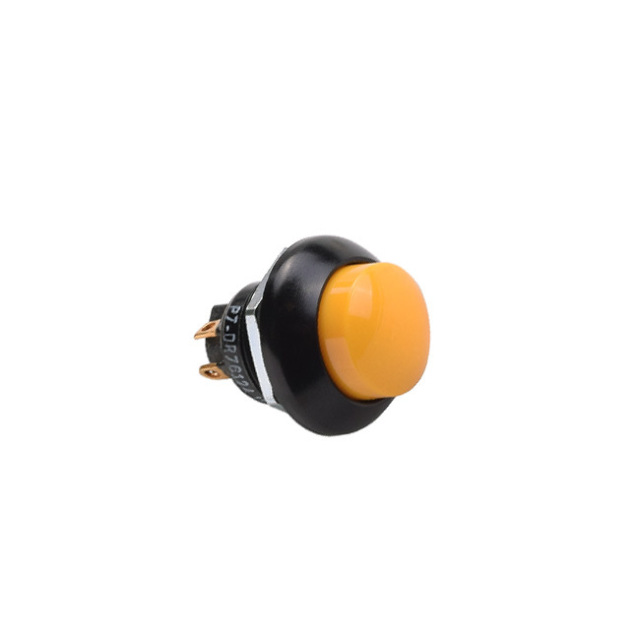

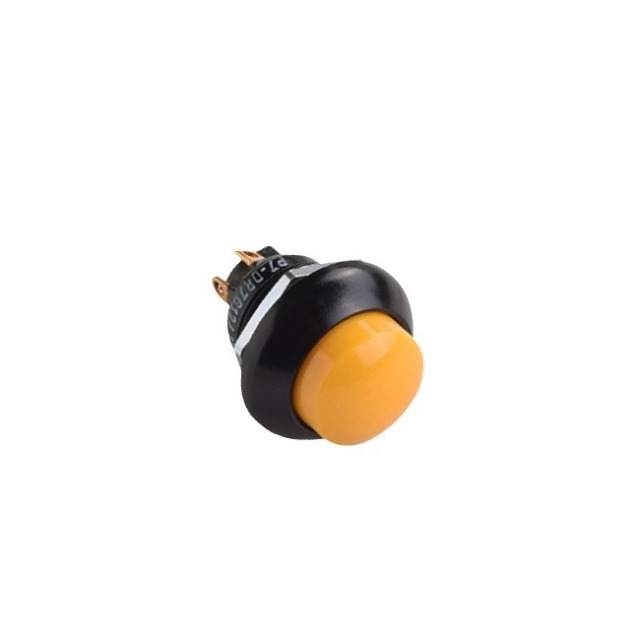

American TTO Otto Push button switch P7-531124 Product Details:
Ruggedly designed with OTTO's patented double interrupt design in a package much smaller than the P1 Series. These subminiature switches allow a large number of switches to be installed in a panel or small panel space, meeting today's technical requirements.
Long life snap action design provides low contact resistance (maximum initial 25 milliohms) and is protected from the environment by a silicone rubber sleeve, operating on the "rolling sleeve" principle for long life and smooth operation. Mechanical life is 20,000 operations.
The P7 Series is designed to meet the requirements of MIL-PRF-8805, including low level switching (10mA @ 30mV) and power switching up to 28 amps at 5VDC.
A variety of mounting styles are available to best match the application. The P7-1, P7-2, P7-7, and P7-8 housing styles feature a forged bushing shape that allows for press-fit mounting on aircraft flight controls and handles and similar applications. Other styles feature threaded bushing mounting. The P7-3 and P7-A housing styles feature a front panel bezel, while the P7-5 and P7-6 have a traditional bushing for rear panel mounting. Silver or black bezels are standard. Other colors are available by special order.
feature
lLow level switching capability
l Mechanical life is 20,000 cycles
lContact resistance is less than 25mΩ
High contact pressure
16 circuit variations
Positive tactile feedback
lMultiple installation methods
lSquare button option with housing style A
lComplies with MIL-PRF-8805/110 standards
l Moisture and dust resistant, meets IP64 and MIL-PRF-8805 design 2 or waterproof level reaches IP68S and MIL-PRF-8805 design 3
lRoHS compliant
Founded in 1961, OTTO Engineering is located in Carpentersville, Illinois, USA. It has been designing, developing and manufacturing control products and communication accessories for 60 years. Products are specially designed to meet customers' demanding application requirements.
OTTO is a vertically integrated manufacturer with in-house injection molding, stamping, CNC machining, cable assembly and cable overmolding capabilities. It also has strong mechanical, electrical and RF design engineering capabilities, test laboratories and computer-controlled production line testing capabilities.
OTTO by OTTO Controls and OTTO Communications Both divisions sell its products.
control
Our switches and control handles are at work every day in some of the most demanding applications including heavy equipment, aerospace, marine, medical, communications and other demanding markets.
Communications
OTTO Communications specializes in accessories for the two-way radio market including surveillance kits, wireless accessories, light and heavy duty headsets, speaker microphones, tactical, fire and hazmat communications equipment.
